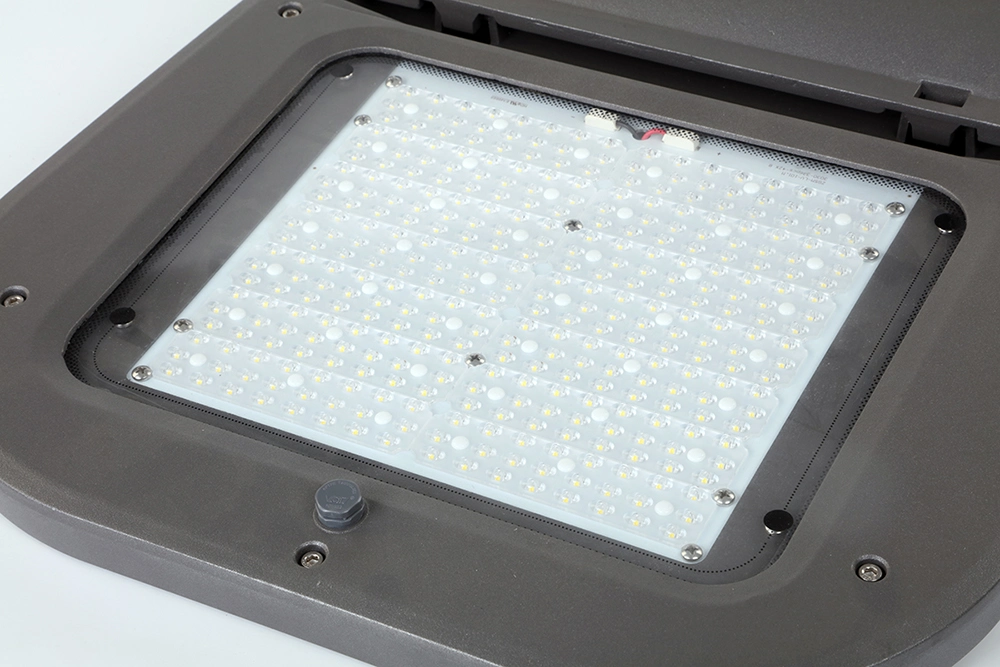

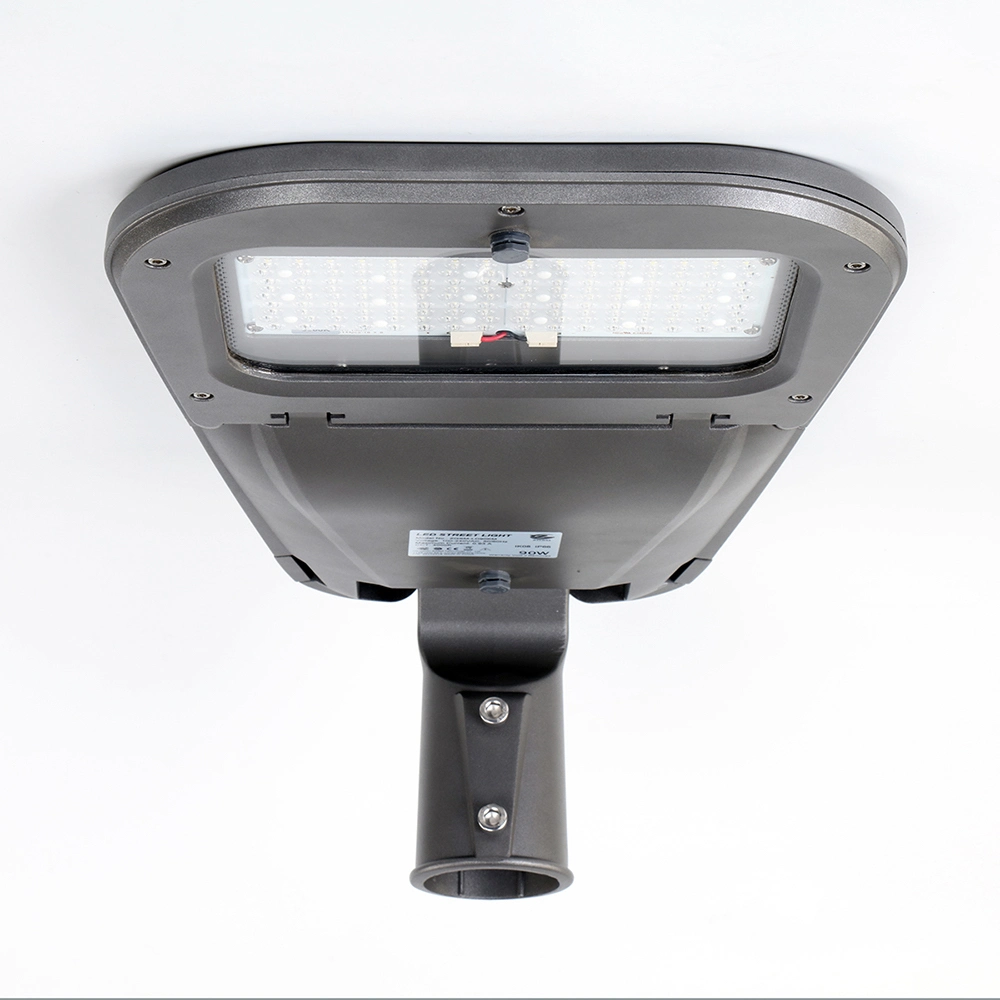

180W die-casting aluminium housing LED Street Light
| Nominal Power | 120W | 150W | 180W | 200W | |
| LED Qty. | 192 pcs | 240 pcs | 288 pcs | 336 pcs | |
| Lumen Output | 15000 lm | 18750 lm | 22500 lm | 25000 lm | |
| Luminaire Efficacy | 125 lm /w | 125 lm /w | 125 lm /w | 125 lm /w | |
| Input Voltage | 100-240V /277VAC 50 /60Hz | ||||
| LED Brand | Lumileds 3030 2D | ||||
| Driver Brand | Non-dimmable: MeanWell HLG Driver | Dimmable: Inventronics Driver | ||||
| Light Distributions | TypeI, Medium; TypeII, Medium; TypeIII, Medium | ||||
| Color Temperature | 3000K, 4000K, 5000K, 5700K | ||||
| Surge Protection Device(SPD) | 10KV | ||||
| Working Environment | -40 ºC ~ +50 ºC, 10%~90%RH | ||||
| Storage Temperature | -40 ºC ~ +50 ºC | ||||
| Rating | Class I, IP66, IK08 | ||||
| CRI | > 70 | ||||
| Power Factor | > 0.95 | ||||
| Power Efficiency | > 90% | ||||
| Material | Housing: Die-cast aluminum; Lens: Tempered glass and PC | ||||
| Lifetime(h) | >100,000(L70) | ||||
| Fixture Info. | 861*447*153 mm, 12.0 / 12.0 / 12.1 / 12.2 kg | ||||
| Packing Info. | 915*495*225 mm, 14.5 / 14.5 / 14.6 / 14.7 kg | ||||
Product advantages:
1. Luminaire Efficacy: 3030 LED 125~130 lm/w; 5050 LED 155~165 lm/w;
2. Meanwell XLG Driver and Inventronics driver for 0-5V, 0-10V, PWM, Timer dimming.
3. Tempered Glass lens.
4. Luminaire efficacy up to 165lm/w.
5. Competitive price.
6. 5 years warranty.
7. IP66 and IK08.
8. Type I, Type II, Type III optics for different width road lighting.
9. With Surge Projector to protect lamp from up to 10KV/10KA.
10. With Power Turn Off Protector to protect the personal safety.
11. With Imported Breather to keep the air pressure balance inside and outside the lamp, improving work performance, life of the lamp and prevent burst.
12. Big recessed structure design can be installed the MPPT remote control controller and wireless module to be a intelligent control system.
13. Full die-cast aluminum housing to prevent guano.
14. Snap-in type, easy installation by snap locking the two ends together, do not need tools to open or close the light cap.
